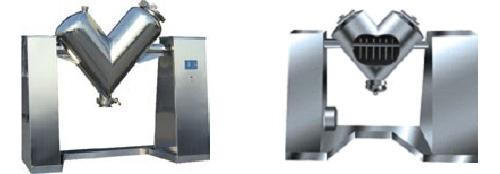

VHJ系列混合机

文章出处：恒海干燥发表时间：2014/8/13 15:31:10

概述 Description

本机适用于制药、化工、食品等行业两种以上干粉状、颗粒状物料的混和。该机混和筒结构独特，混和效率高、无死角，采用不锈钢材料制作，内外壁抛光处理，外形美观，混和均匀，适用面较宽，并能根据用户的要求配套强制搅拌器，以适合较细的粉粒、块状、含有一定水份的物料混合之用。

This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty.Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.

-----------------------------------------------------------------------------------------------------------------

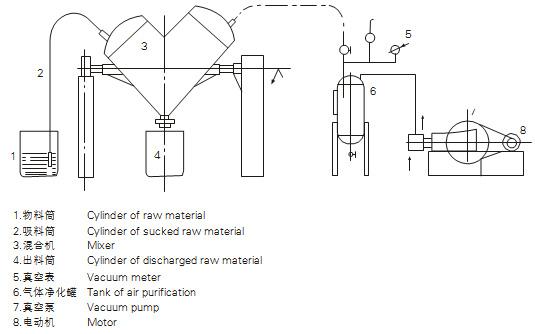

结构示意图 Schematic of structure

-----------------------------------------------------------------------------------------------------------------

技术参数 Technical parameters

型号规格Model and specification	VHJ-0.18	VHJ-0.3	VHJ-0.5	VHJ-1.0	VHJ-1.5	VHJ-2.0	VHJ-2.5	VHJ-3.0	VHJ-4.0	VHJ-5.0	VHJ-6
生产能力Productive capacity (kg/time)	90	150	250	500	750	1000	1250	1500	2000	2500	3000
配用真空泵型号Model of vacuum pump	W2	W2	W2 或SK-1.5	W3 或SK-3	W3 或SK-3	W3 或SK-3	W3 或SK-6	W4 或SK-6	W4 或SK-9	W4 或SK-9	W4 或SK-12
进料时间Time of raw material fed in (min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20	18-25
混合时间Mixing time (min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12	8-12
全容积Total volume (m³)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0	6.0
搅拌速度Stirring speed (r/min)	12	12	12	12	12	12	12	10	10	10	10
电机功率Power of motor (kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15	18.5
回转高度Rotating height (mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800	5300
重量Weight (kg)	280	320	550	950	1020	1600	2040	2300	2800	3250	3850
