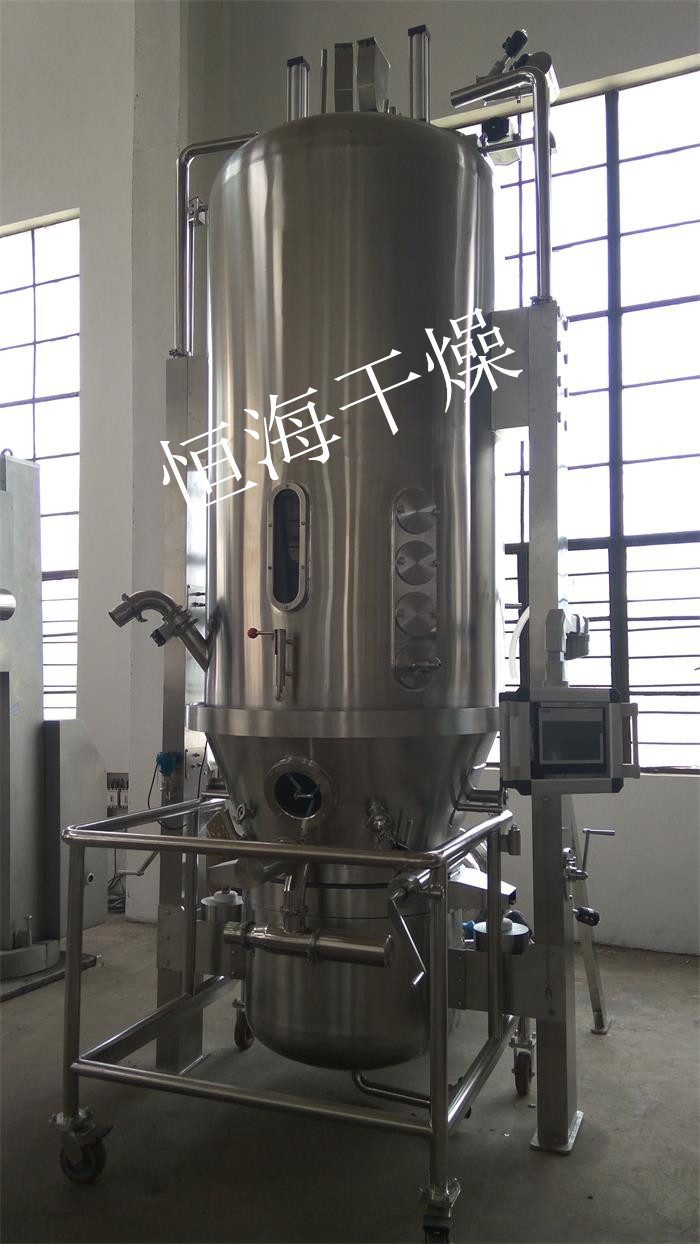

LDP-B流化床包衣机
概述 Description
流化床包衣机是将流态化包衣技术与喷雾技术有机结合为一体的新型微粒包衣设备，广泛用于膜缓控释、骨架缓控释胶囊、丸剂包衣、颗粒、粉体包衣。
Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is wide used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.
----------------------------------------------------------------------------------------------------------------
设备特点 Features of equipment
◎ 底喷流态化，物料具备严格的运行轨迹，因而可获得均匀、连续的衣膜。
◎ 粉体颗粒、丸掩味、防潮、防氧化、防水、防热、着色隔离等包衣。
◎ 无包衣材料损失、生产成本低。
◎ 雾粒到达物料线路短，无“喷雾干燥”之患。
◎ 圆柱形加速容器或倒锥体减速设计，可行微粒、大粒、小粒、微丸包衣。
◎ 物料分散性极好，无粘连现象。
◎ Coating of bottom spraying, material flow in order. We can get uniform and continuous film.
◎ Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating.
◎ Low productive cost, and the coating material is used perfect.
◎ Short travel distance of fog granule and without the problem of "spray drying".
◎ The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
◎ The high separate, without adhere.
----------------------------------------------------------------------------------------------------------------
技术参数 Technical parameters
项目Item / 规格Specification |
3 |
5 |
15 |
30 |
60 |
90 |
120 |
200 |
300-1000 | ||
投料量Capacity |
Kg/批kg/batch |
3 |
5 |
10-20 |
25-40 |
40-80 |
50-90 |
80-120 |
150-200 |
按用户要求设计 |
|
原料容器容量Container voiume |
L |
12 |
22 |
50 |
100 |
220 |
300 |
420 |
650 |
||
风机功率Power of fan |
Kw |
4 |
4 |
7.5 |
7.5 |
15 |
18.5 |
18.5 |
22 |
||
噪音Noise |
db |
风机隔离处理噪音小于75分贝 No more than 75db Separated of fan |
|||||||||
压缩空气 Compressed air |
压强Pressure |
Mpa |
0.6 |
||||||||
耗量Consumption |
M3/min |
0.4 |
0.4 |
0.6 |
0.9 |
1.3 |
1.3 |
1.1 |
1.1 |
||
蒸汽 Steam |
压强Pressure |
Mpa |
0.4-0.6 |
||||||||
耗量Consumption |
Kg/h |
|
|
64 |
85 |
181 |
210 |
250 |
330 |
||
电加热功率Power of electrical heater |
Kw |
9kw |
6kw |
按用户要求设计By client |
|||||||

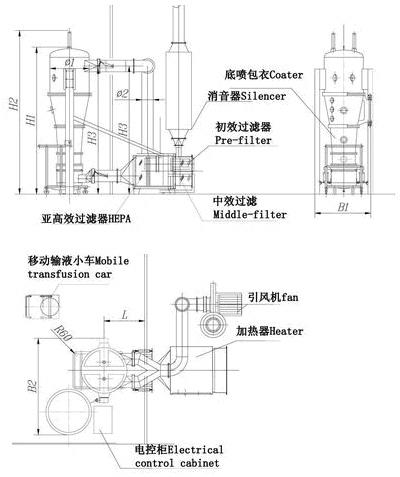

主机尺寸 Size of installation for reference |
H1(mm) |
|
|
2870 |
3150 |
3250 |
3400 |
3630 |
3890 |
||
H2(mm) |
2600 |
2600 |
3230 |
3620 |
3720 |
3870 |
4100 |
4360 |
|||
H3(mm) |
2410 |
2410 |
2545 |
2930 |
3020 |
3160 |
3390 |
3600 |
|||
B1(mm) |
770 |
960 |
1169 |
1460 |
1660 |
1760 |
2060 |
2260 |
|||
B2(mm) |
1170 |
1510 |
1860 |
2460 |
2860 |
1960 |
3660 |
4060 |
|||
L(mm) |
850 |
1000 |
1550 |
1700 |
1800 |
1800 |
2000 |
2100 |
|||
￠1 |
400 |
550 |
700 |
1000 |
1200 |
1300 |
1600 |
1800 |
|||
￠2 |
180 |
180 |
250 |
250 |
280 |
280 |
280 |
315 |
|||
所有尺寸仅作参考，视物料情况，本公司拥有变更权利，并不另行通知。
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
