概述   Description

        气流干燥机又称瞬间、闪急干燥机，我国从60年代开始在制药、化工等行业应用。我厂建厂伊始就引进国内外先进技术，为制药化工、食品等行业提供优质气流干燥设备。十多年来不断改进提高发展以下三大系列气流干燥机：QG系列、FG系列、GFF系列。

Air stream drying is also called insyantaneous drying.It is used in pharmaceutical industry, chemical industry from 1960 at home.Our factory follows up the advanced technology at abroad, produce series air stream dryer for home customer.The main products are divided into three series:QG,FG and GFF.

----------------------------------------------------------------------------------------------------------------

特点   Featrures

1、干燥强度大，设备投资省，蒸发水份能力，可从50kgH2O/h-2000kgH2O/h。

2、干燥时间短，适用于热敏性物料，成品不与外界接触，无污染，质量好。

3、设备成套提供，热源可选择蒸汽加热或配套使用燃煤、燃油、燃气热风炉等。



1.Powerful drying, little invest and the amount of evaporated moisture is high(from 50kg/h to 2000kg/h).

2.The drying time is short. The series is suitable for stong heat sensitive materials. The finished product is separated from outside, and on pollution with high quality.

3.The equipment is a total set. The heat source can be choose from steam, coal fuel, oil fuel and gas fuel hot air furnace.



QG系列

        基本型气流干燥设备，适用于松散状、粘性小、成品为颗粒及粉末的物料。此流程示意为负压气流干燥，用户可根据产品特性选择正压型式的干燥方法。

It is a kind base type, suitable for drying granule and adhesive property powder the sketch is negative stream drying, and you can choose positive stream drying.

----------------------------------------------------------------------------------------------------------------

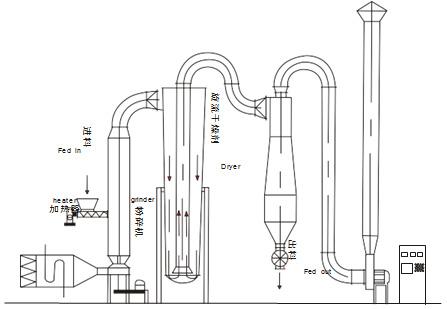

结构示意图   Schematic of structure



----------------------------------------------------------------------------------------------------------------

技术参数   Technical parameters

型号spec	蒸发水份(kg/h) moisture to be evaporated	装机功率(kw) power	占地面积(㎡) occupied area	高度(m) Height
QG 50	50	6.25(8.28)	20	11
JG 50	50	9.25(11.25)	20	11
QG 100	100	8.6(11.6)	32	12
JG 100	100	16.1(19.1)	32	12
QG 250	250	20(27.5)	64	16
JG 250	250	31(38.5)	64	16
QG 500	500	48(58)	96	16
JG 500	500	48(58)	96	16
QG 1000	1000	63(78)	120	22
JG 1000	1000	78(98)	120	22

 注：部分参数设计时视不同物料有所调整，以设计为准。



GFF系列

        设备带强化粉碎装置，具有产品终水份低、设备占地面积小、高度低等特点，适用于滤饼、膏状、带有一定粘性、要求成品为粉末状的产品。

The series include force grinding equipment,and the mateials have less moisture, the installing area and the height is small, it is suitable for pulpiness, paste-like mixture or adhesive property powder materials.



----------------------------------------------------------------------------------------------------------------

技术参数   Technical parameters

型号 spec	蒸发水份(kg/h) moisture to be evaporated	功率配备(kw) power	占地面积(m²) occupied area	热功率(%) heat efficiency
GFF-300	25	7.5	4×4	5.5
GFF-400	50	11	4×6.5	6.5
GFF-500	75	13	4×7	7.5
GFF-600	100	17	5×6	8.0
GFF-800	200	29	5×9	9.0



FG系列

    具有尾气循环使用比一般气流干燥机节能30％的优点，适用于无粘性、松散状物料，成品为颗粒及粉末。

The out air is circulation and save 30％power.It is suitable for no adhesive property,disorder materials,and finished product is graphite and powder.

----------------------------------------------------------------------------------------------------------------

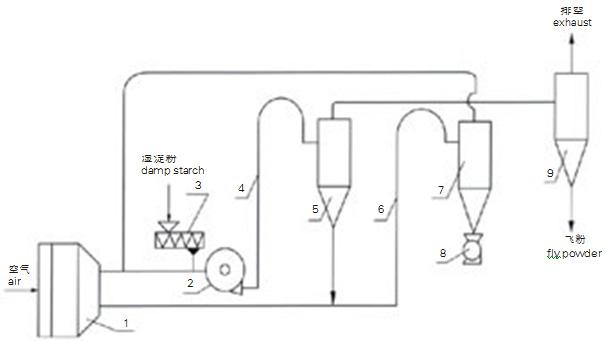

结构示意图   Schematic of structure



----------------------------------------------------------------------------------------------------------------

技术参数   Technical parameters

型号 spec	蒸发水份(kg/h) moisture to be evaporated	功率配备(kw) power	占地面积(m²) occupied area	热功率(%) heat efficiency
FG0.25	113	11	3.5×2.5	>80
FG0.5	225	18.5	7×5	>80
FG0.9	450	30	7×6.5	>80
FG1.5	675	55	8×7	>80
FG2.0	900	75	11×7	>80
FG2.5	1125	90	12×8	>80
FG3.5	1491	110	14×10	>80
