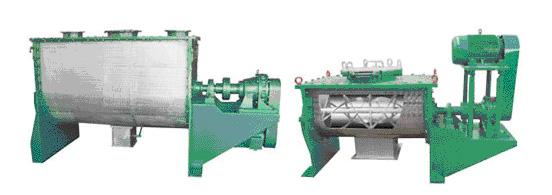

WLDH系列卧式螺带混合机

文章出处:恒海干燥发表时间:2014/8/13 16:06:29

概述   Description

        该机型由容器、螺旋搅拌叶片和传动部件组成:螺旋叶片一般做成双层或三层,外层螺旋将物料从两侧向中央汇集,内层螺旋将物料从中央两侧输送,形成对流混合。

The model is composed of a container, stirring blades and transmission components: helical blade is generally made of two or three layers, the outer spiral material collected from both sides to the central, inner spiral material from central conveying, the formation of convective mixing.

-----------------------------------------------------------------------------------------------------------------

特点   Featrures

 装载系数大、设备占地面积小。

 混合粘性或具有凝聚性的物料时,清洗困难。



  Big coefficient of loading、small occupied area.

  It is difficult to clean when it is used to mix viscous or adhesive material.

-----------------------------------------------------------------------------------------------------------------

应用范围   Application

   螺带混合机一般用于粘性或有凝聚性的粉粒体的混合以及粉粒体中添加液体及糊状物料的混合,同时由于粘性物料清洗困难的特点,适用于产量大、不经常更换品种的场合混合。

  The ribbon mixer is generally used in the mixing of viscous or cohesion of adding mixture of liquid and pasty materials of powder mixing and powder, and at the same time, because of the characteristics of the viscous material cleaning difficult, suitable for mixed production, not replace the variety of situations.

-----------------------------------------------------------------------------------------------------------------

技术参数   Technical parameters

型号Type WLDH-0.1 WLDH-0.3 WLDH-0.5 WLDH-1 WLDH-1.5 WLDH-2 WLDH-3 WLDH-4 WLDH-6 WLDH-8 WLDH-10
一次性混合
Kg one job
(kg)
30-50 100-150 200-300 400-600 600-900 800-1200 1200-1800 1600-2400 2400-3600 3200-4800 4000-6000
电机功率 Tnstaued
capaci
(kg)
1.5-4 3-3.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 37-55
设备重量
Kg weight
(kg)
300 500 900 1400 1900 2500 3100 3600 5300 6800 7800
